Type 3500

~ 71 mm

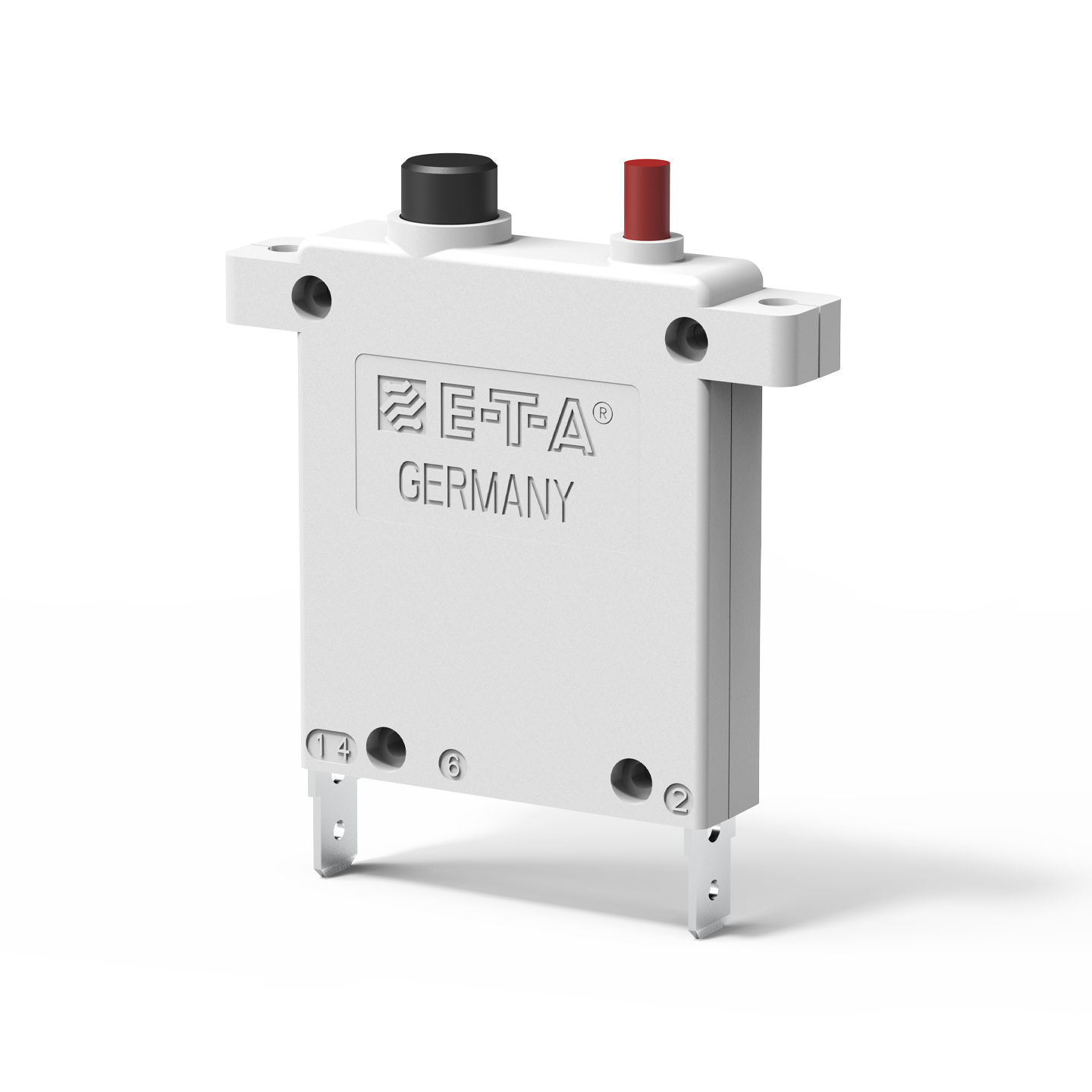

Typ 3500 von E-T-A: Einpoliger, thermisch-magnetischer Schutzschalter mit Handauslöser und Flanschbefestigung

Description

Single pole thermal-magnetic circuit breaker with tease-free, trip-free, snap action mechanism and two button operation (M-type TM CBE to EN 60934). Featuring a flange for panel mounting, and optional auxiliary contacts and unprotected shunt tap terminal.

Approved to CBE standard EN 60934 (IEC 60934).

Technical Data

Voltage rating
  • AC 240 V (50/60 Hz)
  • DC 65 V
  • UL/CSA: DC 80 V
Current ratings from 0.05 A up to 16 A
Number of poles single pole
Mounting method flange
Terminal design blade terminals
screw terminals
solder terminals
Actuation manual release
push button
Auxiliary contacts with auxiliary contacts
without auxiliary contacts
Water splash protection without water splash protection
Illumination without illumination
Typical life 5,000 operations at 2 x IN, resistive

5,000 operations at 1 x IN, inductive
Interrupting capacity Icn 0.05...0.8 A: self-limiting

1...2 A: 200 A

2.5...16 A: 400 A
Certificates VDE, CSA, UL

Applications

  • Automation
  • Minus DC 28 V
  • Minus DC 48 V
  • Minus DC 72 V
  • Telecom & Datacom
