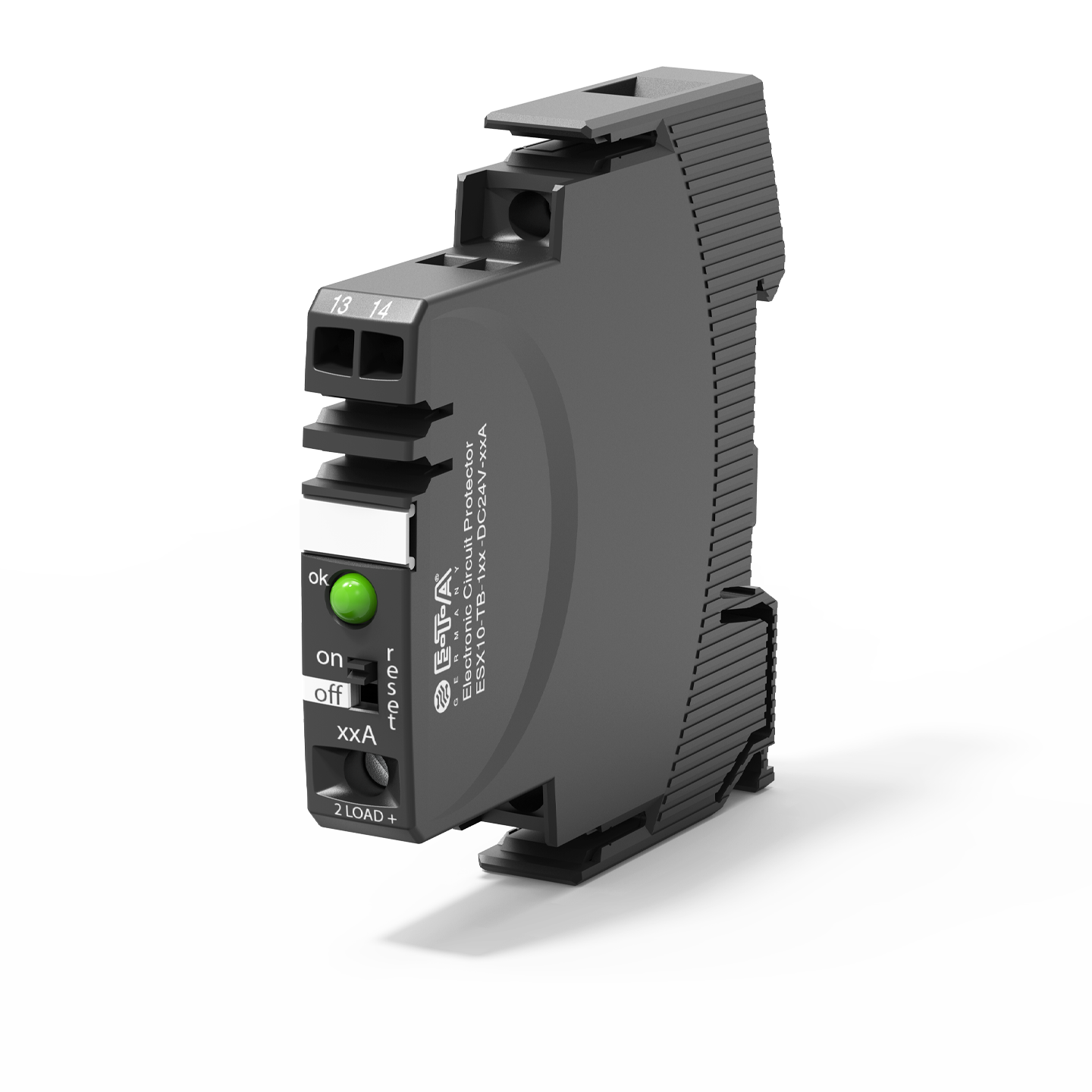

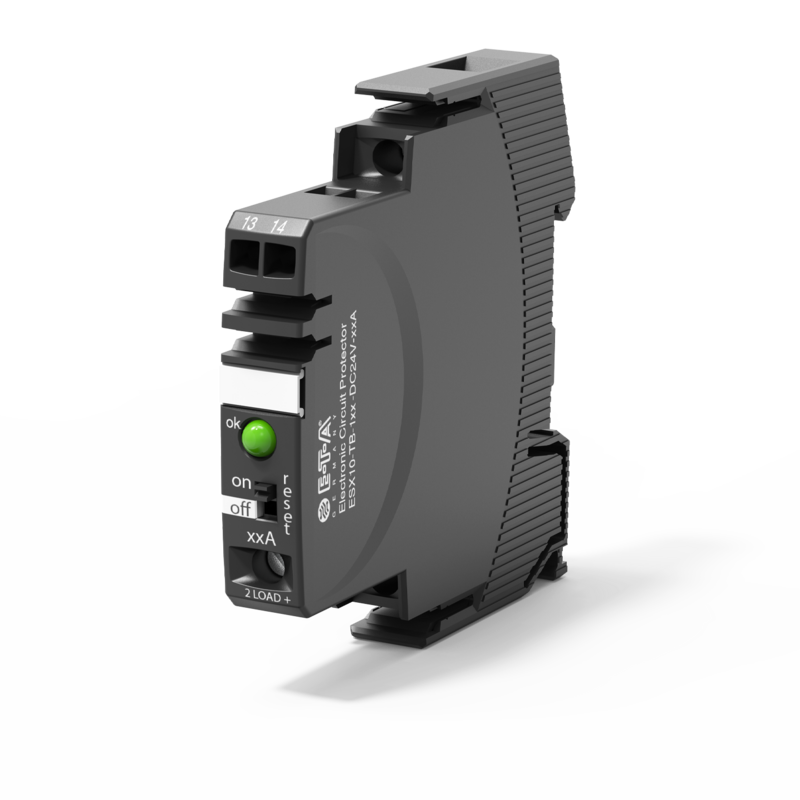

Electronic circuit protector, ESX10, DC 24 V, plug-in type, fixed current rating, no. of channels 1
The ESX10-TB-101-DC24V-16A is an extension of the ESX10-T range for DC24V and is the first product to complete a comprehensive protection range with ratings from 0.5 A to 16 A.
At a width of only 12.5mm it provides selective protection for all DC 24 V load circuits. This is achieved by a combination of active electronic current limitation in the event of a short circuit and overload disconnection typically from 1.15 times rated current. The ESX10-T is track-mountable and provides ease of installation for groups of devices with several circuits.
|Number of poles||1-pole|
short circuit: typically 100 ms
overload: typically 220 ms
|Current limitation||typically 1,15 x IN|
|Status indication||1 LED green/orange/red: status/fault|
|Terminal design||screw terminals|
|Certificates||CE-logo UL 2367, File # E306740 Solid State Overcurrent Protectors|
