The intelligent CPC20 ControlPlex®® System protects your DC 24 V power distribution against overload and short circuit. The basis is the modular terminal block system Module 18plus. The ESX60D electronic circuit protector continuously records the load current and the load voltage of the system. These measuring values are bundled by the CPC20 bus controller and transmitted to the connected control systems. The system operator can continuously monitor his power distribution system and detect changes or aberrations at an early stage. The ControlPlex®®System thus prevents unplanned system downtimes, improves transparency and stabilises the production process, increases the quality of the goods produced and significantly increases plant availability.
- Enhances system availability through comprehensive diagnostic functions
- Improves protection against voltage dips through selective protection of loads
- Increases the flexibility of system planning through a modular terminal block system

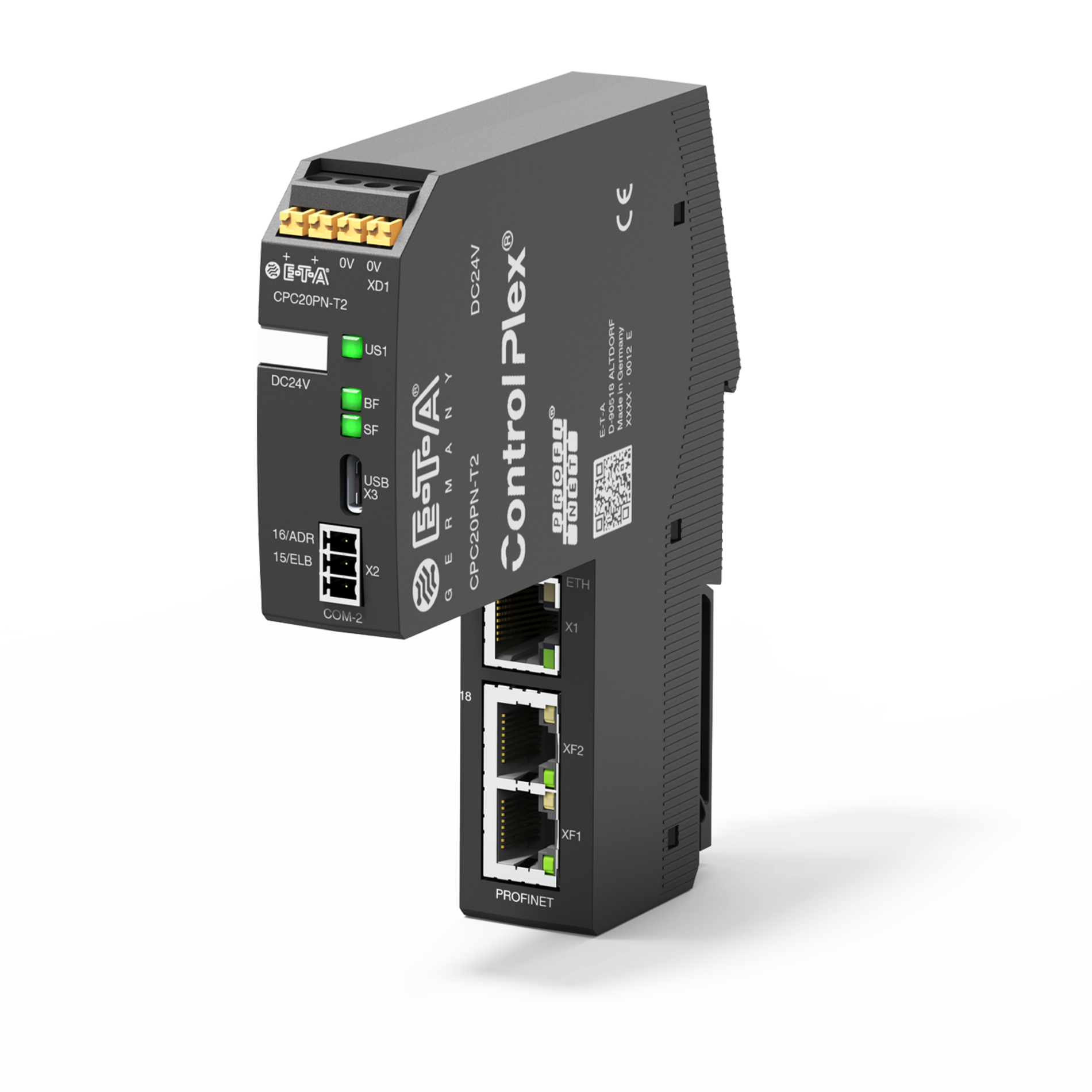

CPC20 bus controller
Increasing system availability by data logging and transmission

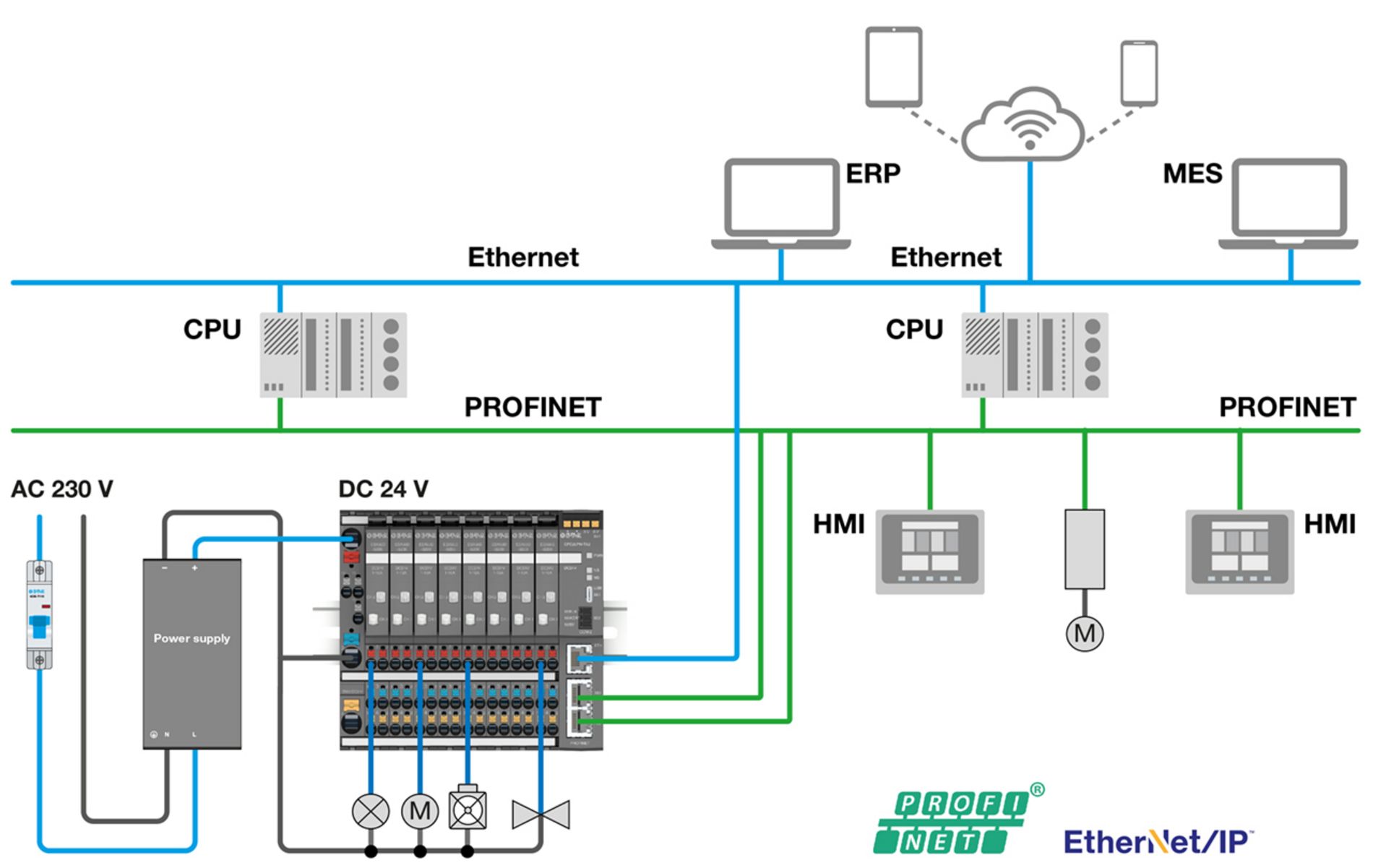

The CPC20 bus controller is the brain of the entire system. Its interfaces offer the perfect connection to the superordinate systems. On the field level, it connects the power distribution system with the connected CPUs and HMIs by means of its PROFINET interface and thus allows the required data exchange. Measuring values and status information can be visualised for both the system operators and the service personnel.
Quick access through integral web server
A web server is included on the bus controller. It allows direct access to the data of the DC 24 V power distribution. All measuring data and status information can directly be accessed without using the field bus interface. This particularly advantageous for the maintenance personnel, because information is quickly available during initial start-up and in the event of a system shutdown.
Device description files
Firmware- und Softwareupdates
Declaration of Conformity

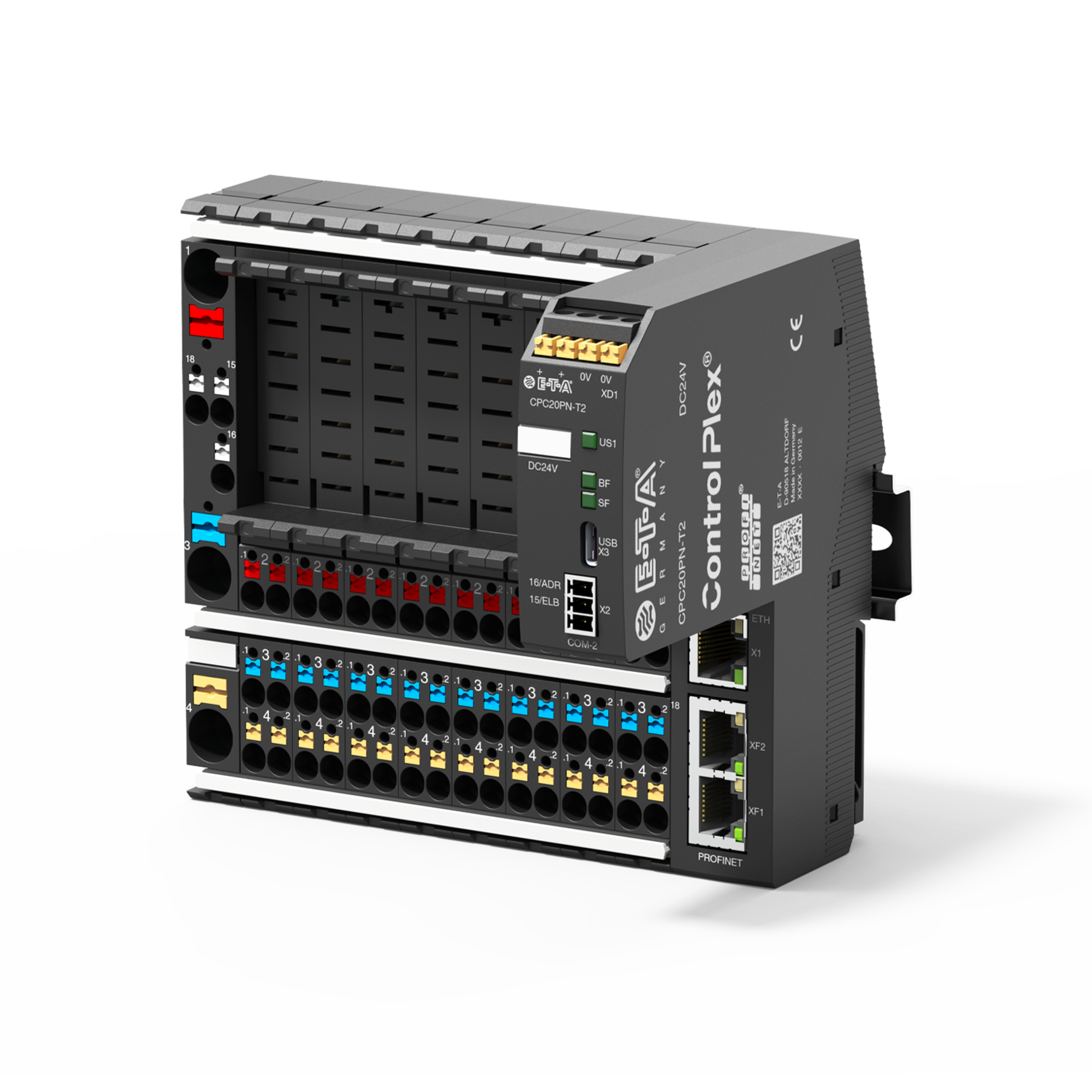

Module 18plus intelligent power distribution
Module 18plus - a modular terminal block system for unrivalled flexibility
The Module 18plus intelligent power distribution module combines compact and innovative wiring technology with the smart CPC20.ControlPlex® bus controller.

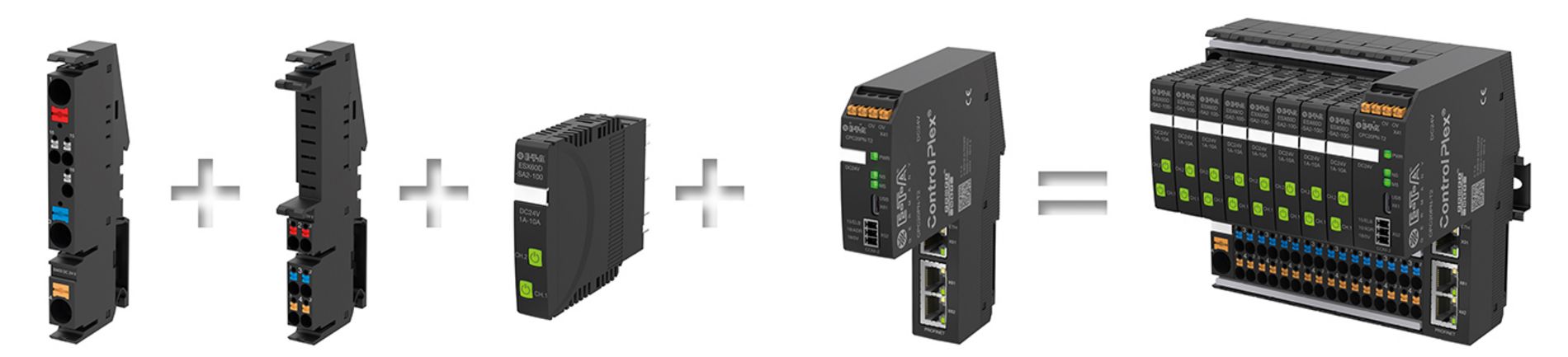

Modular power distribution concept
The power distribution system Module 18plus is a complete mounting and power distribution system with push-in technology for DIN rail mounting. The system has a fully-fledged 80 A potential distribution and is suitable for wiring of all load cables and signal lines of the DC 24 V control voltage. The Module 18plus is suitable for decentralised power distribution systems as well as centralised system concepts.
The terminal blocks are connected to the supply module. This can be done extremely flexibly and with only the exact number of channels required. Additional connecting terminals and connection cables are not required. Each of these connection modules accommodates one intelligent ESX60D circuit protector with two channels each. It is thus possible to protect 32 different load outputs with one flexibly configured system.

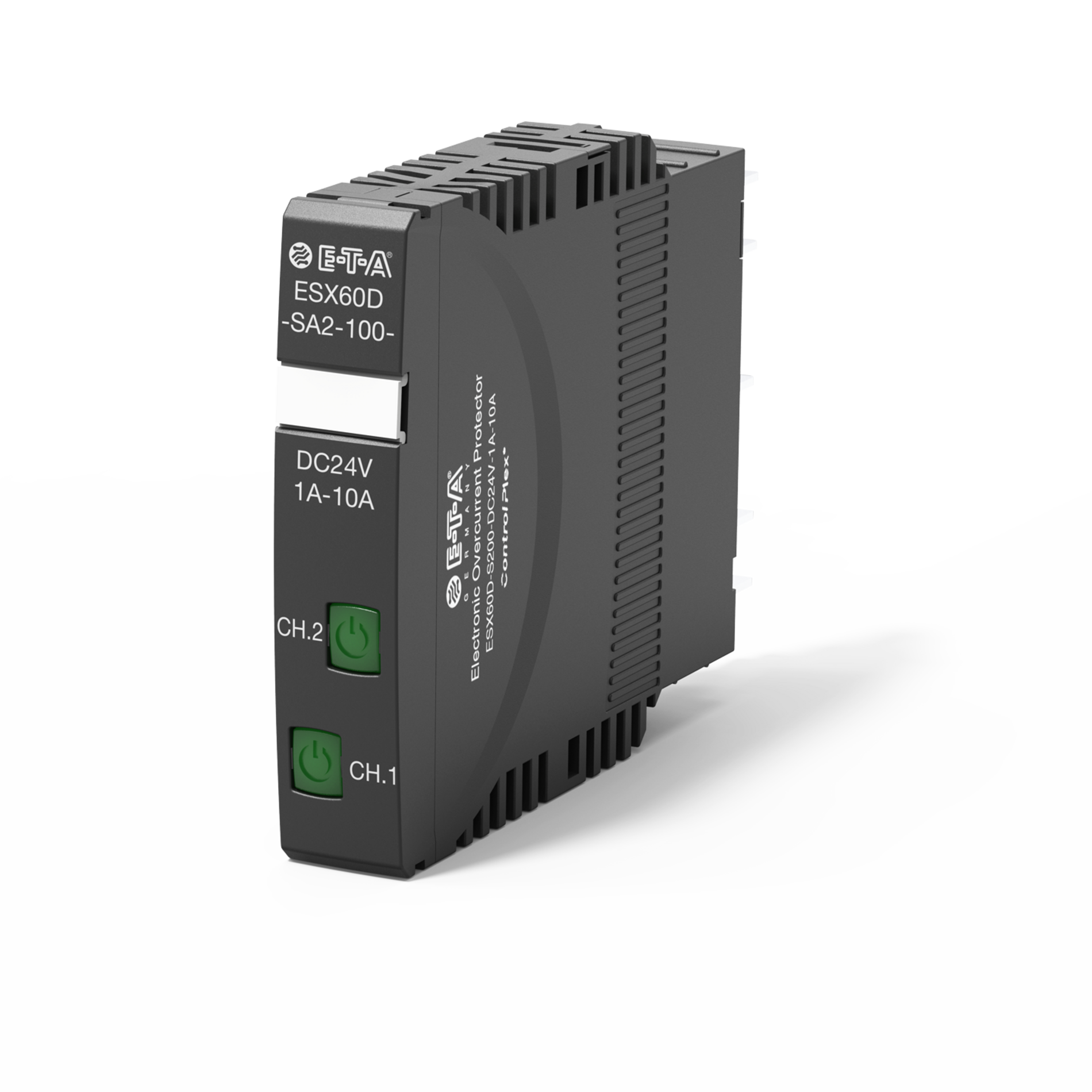

ESX60D electronic circuit protector
The ESX60D intelligent circuit protector - adjustable for high flexibility
The ESX60D is a double-channel electronic circuit protector with active current limitation and only needs 12.5 mm for protecting two channels. By means of the two LEDs, maintenance personnel can see the status of the individual channel in the control cabinet.
Continuous data collection
In parallel, the status and the recorded measuring values are forwarded to the superordinate controller and can there be visualised on the connected screens. Continuous recording of the load current, of supply and output voltage as well as of the device temperature provides an overview of the current condition of power distribution.
The rated current of the circuit protector can be adjusted via the connected bus system or the server in 1 A increments, thus significantly reducing inventory, because only one product version is required for different current ratings.
Proper protection of system and loads
The ESX60D is a latest-state-of-the-art intelligent electronic circuit protector, offering ideal protection of the connected loads against overcurrent and short circuit. Its active current limitation increases system availability and ensures selectivity of the DC 24 V power distribution.
