Hybrid power relay consisting of a bistable electro-mechanical switching system and integral electronic control unit

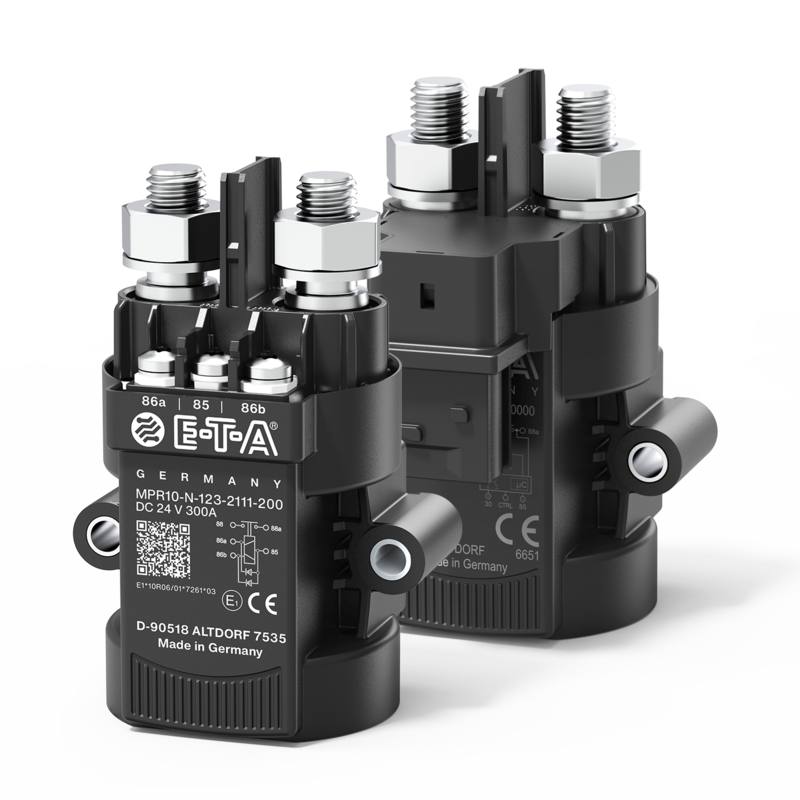

The single pole power relays MPR10 and HPR10 have been designed for switching high current loads and for disconnecting the battery from the on-board electrical system. The mechanical power relay type MPR10 is:
The MPR10 is a bistable relay, i.e. a short current impulse is required only for the switching operation. The contact is then held in its position by permanent magnets without current.
|Voltage rating of load||
DC 12 V
DC 24 V
|Operating voltage of SSRPC||
DC 16...32 V
DC 9...16 V
|Number of poles||1-pole|
|Physical isolation of load circuit||1 (NO)|
|Temperature range||-40° C … +85° C|
M4 connectors side and foot
holes with compression limiter
Mechanical power relay for harsh application conditions.
Extremely power saving due to a bistable drive, which only needs energy during switching operations.
|Contact system type||mechanical|
