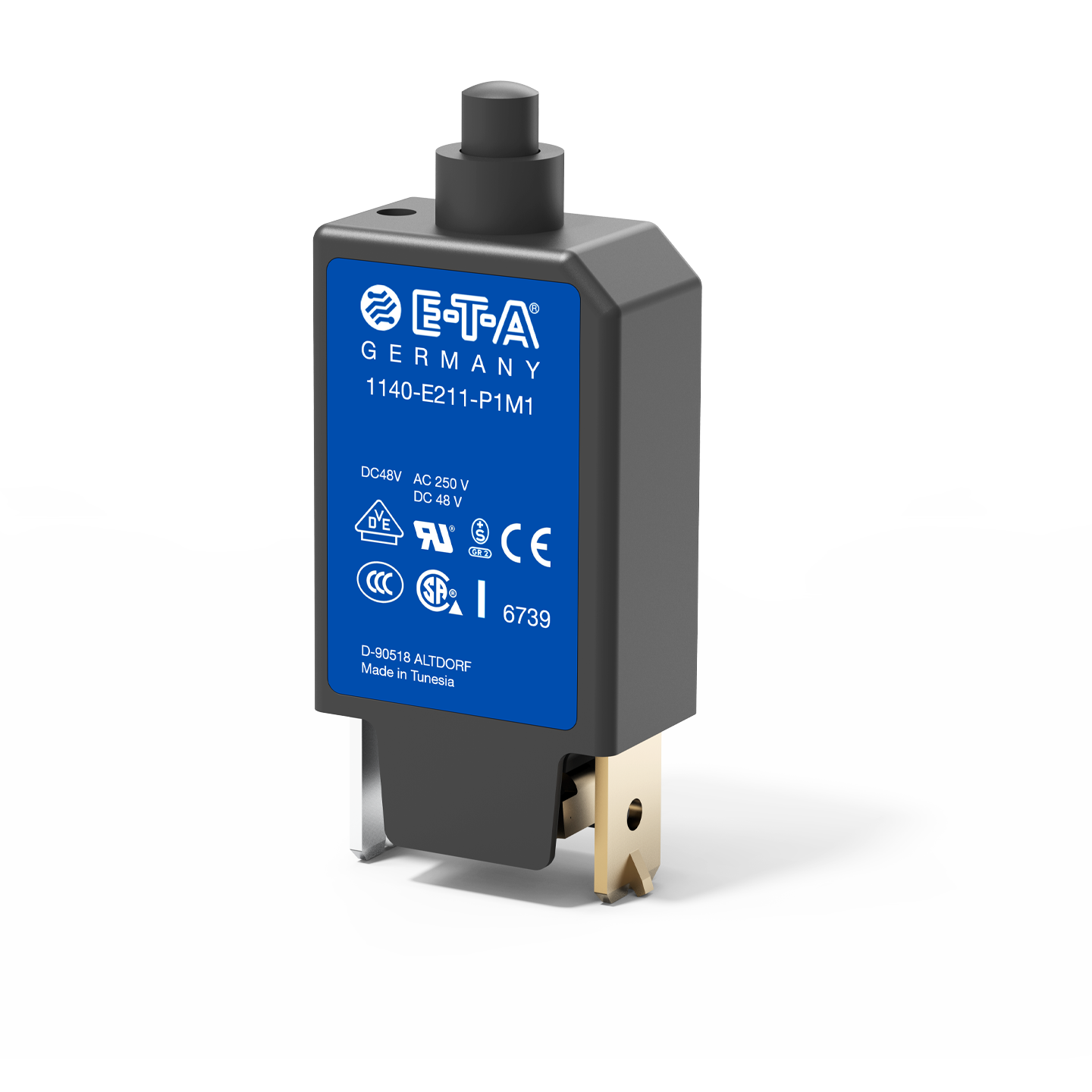

Type: 1140-E

Description

Miniaturised single pole thermal circuit breaker with push-to-reset tease-free, trip-free, snap action mechanism (R-type TO CBE to EN 60934), integral type.

For lower current ratings see types 104.

Approved to CBE standard EN 60934 (IEC 60934).

Voltage rating
  • AC 240 V
  • DC 48 V
  • UL/CSA: AC 250 V
  • UL/CSA: DC 50 V
Current ratings from 3.5 A until 16 A
Number of poles single pole
Mounting method integral mounting
Terminal design blade terminals
Actuation push button
Auxiliary contacts without auxiliary contacts
Water splash protection without water splash protection
Illumination without illumination
Typical life 3.5...8 A: 1,000 operations at 2 x IN, resistive

9...16 A: 100 operations at 2 x IN, inductive
Interrupting capacity Icn 3.5...8 A: 8 x IN

9...16 A: 120 A
Certificates VDE, CSA, UL

Accessories

Order number Description
X 201 285 01

splash cover transparent

Y 300 192 01

hex nut

Y 307 117 02

knurled nut

Applications

  • Household, Hobby & Garden Equipment
  • Lighting technology
  • Medical technology
  • Minus DC 48 V
  • Telecom & Datacom
